BUPI CLEANER® POWERTEC BASIC

1-bath unit with lift or flap door

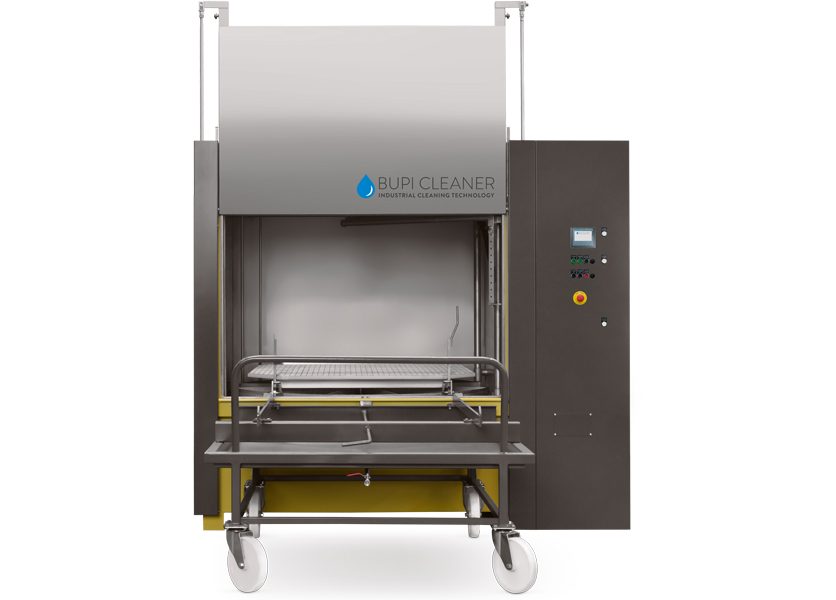

The BUPI CLEANER® POWERTEC series is the all-round talent with a particularly wide range of applications. It is characterised by its particularly space-saving and compact design: Components to be cleaned are inserted into the cleaning system via a trolley. During the cleaning process, the parts rotate in the system while they are exposed to a hot cleaning medium from three sides under high pressure and a large volume flow.

By selecting and combining suitable standard options, the cleaning process can be ideally adapted to your cleaning requirements.
BUPI CLEANER® POWERTEC is available with one cleaning bath and one or two rinsing baths.

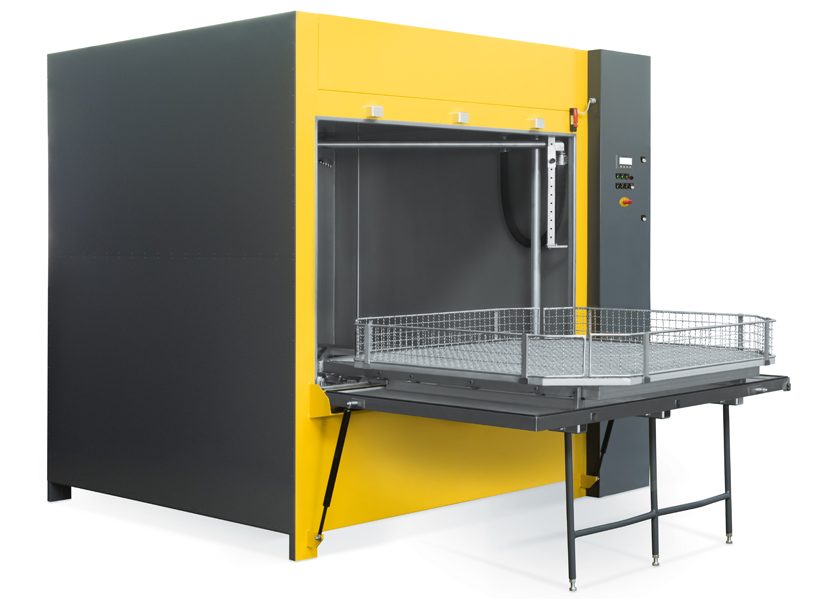

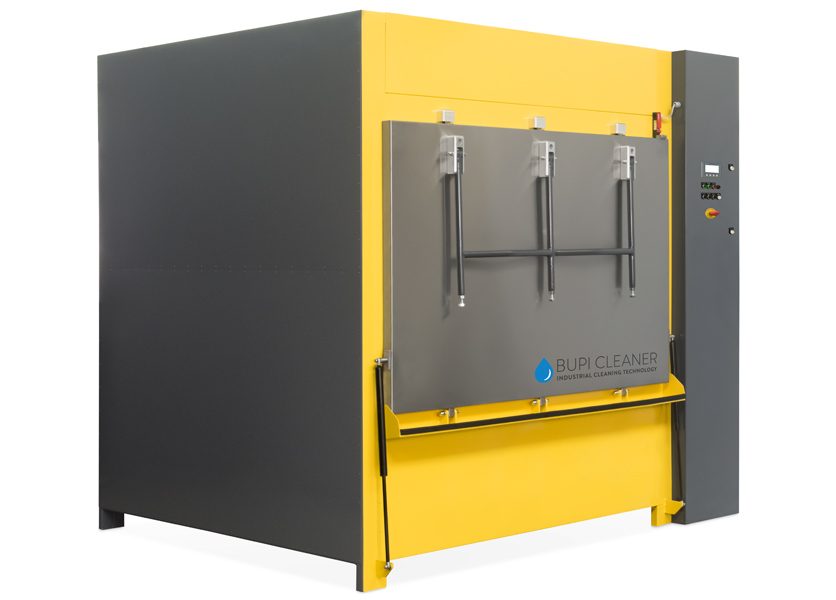

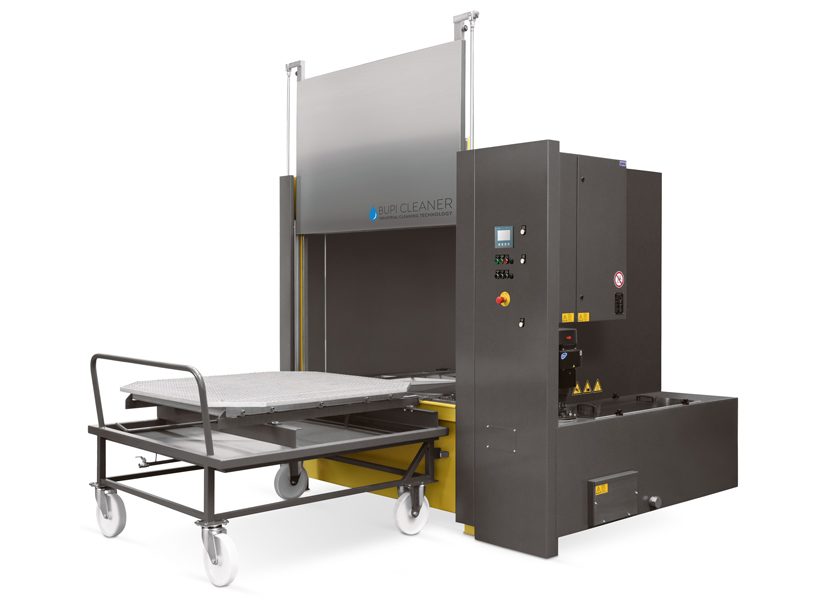

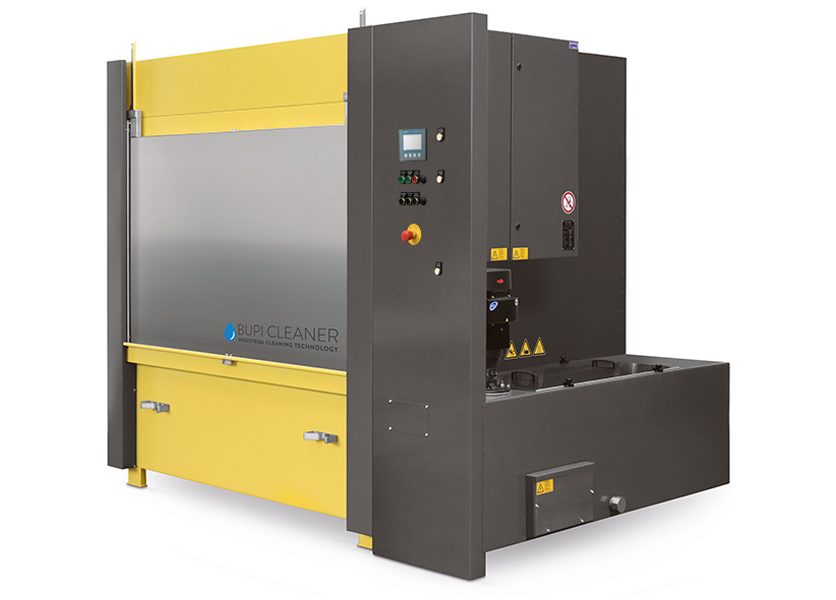

Feeding is optionally via lifting door, hinged door or, on request, via sliding door.

Facts

  • Water-based spray cleaning system as 1-, 2- or 3-bath cleaning system
  • the all-rounder with a wide range of applications
  • space-saving
  • environmentally friendly
  • robust construction
  • reliable and durable
  • low procurement and operating costs

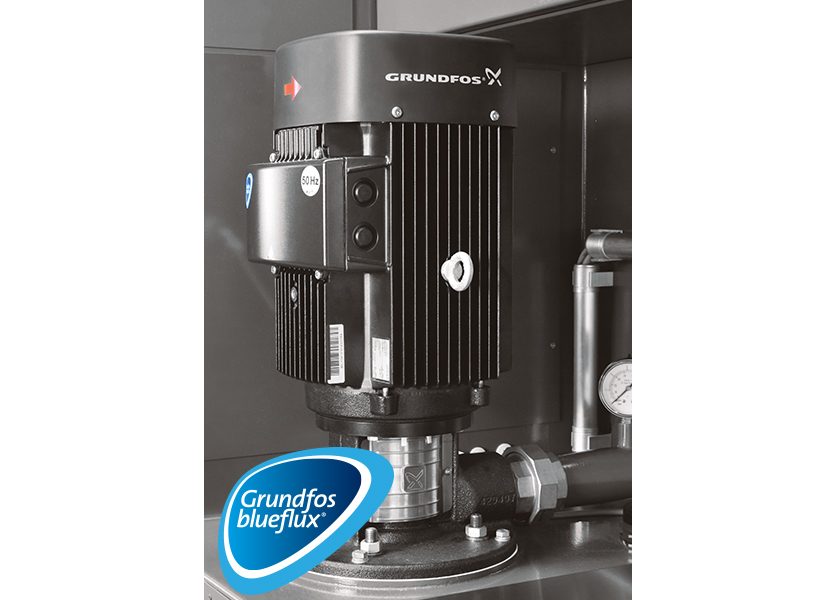

  • highly efficient, powerful Grundfos pumps IE3/IE4/IE5
  • electrical and control technology from Siemens
  • all components in contact with the medium are made of stainless steel
  • Return filtration

Equipment features

  • 1-Bath cleaning system
  • Highly efficient, powerful Grundfos pump IE3/IE4/IE5
  • Siemens S7-1200 control system and KTP400 colour display with membrane keypad
  • All components in contact with the medium are made of stainless steel
  • Return filtration
  • screwed flat jet nozzles

RECOMMENDED ACCESSORIES

  • Steam vapour extraction unit
  • Level control with 3-rod level electrodes
  • Three-phase oil separator
