BUPI CLEANER® POWERTEC KLT PRO
Strong performance in a small format
The BUPI CLEANER® POWERTEC KLT PRO cleaning system is characterised by its space-saving, compact design and simple operation. The small load carriers (KLT) are simply pushed into the large cleaning basket by hand.
The containers rotate horizontally in the system during the cleaning process. They are cleaned from three sides under high pressure and high volume flow with hot cleaning medium, rinsed and then hot-air dried.
To load and unload a cleaning basket during the cleaning process in parallel to the main time, the loading and unloading of the system can be done with several feeder trolleys. This almost doubles the capacity of the system.
Facts
- Double-bath spray cleaning system on an aqueous basis for cleaning transport containers, small load carriers (KLT).
- Cleaning of small boxes up to standardised grid boxes
- space-saving
- environmentally friendly
- robust construction
- reliable and durable
- flexible space division due to height-adjustable, removable shelves
- Integrated hot-air drying system
- small footprint (only 2.7 x 2.3 m)
- low procurement and operating costs
- Highly efficient, powerful Grundfos pumps IE3/IE4/IE5
- Electrical and control technology from Siemens
- all components in contact with the medium are made of stainless steel
- Return filtration
Equipment features
- 2-bath cleaning system
- Highly efficient, powerful Grundfos pumps IE3/IE4/IE5
- Siemens S7-1200 control system and KTP400 colour display with membrane keypad
- all components in contact with the medium are made of stainless steel
- Return filtration
Recommended accessories
- Steam vapour extraction unit
- Level control with float switch
- Cleaning flaps
- Mechanical dosing station
- Three-phase oil separator
- Cascade control PRO
- Integrated hot-air drying system

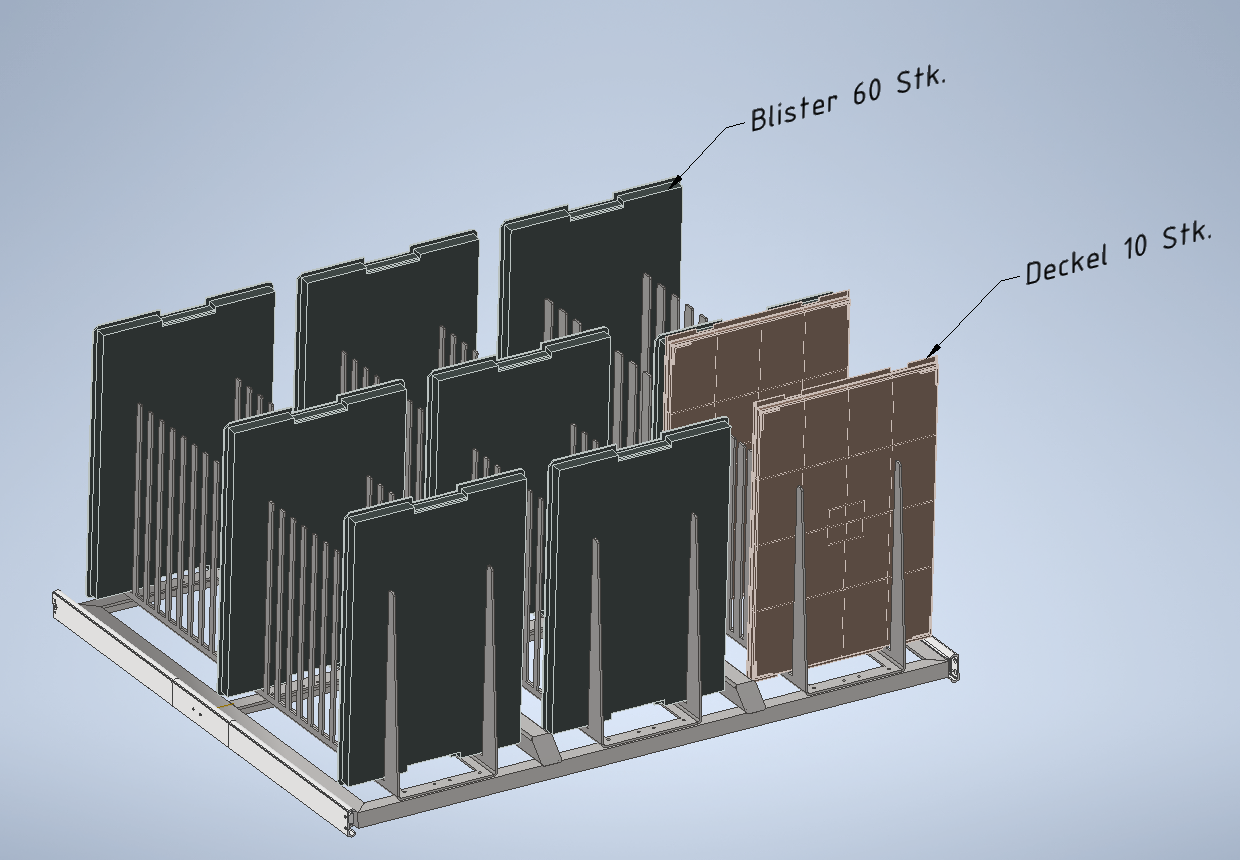

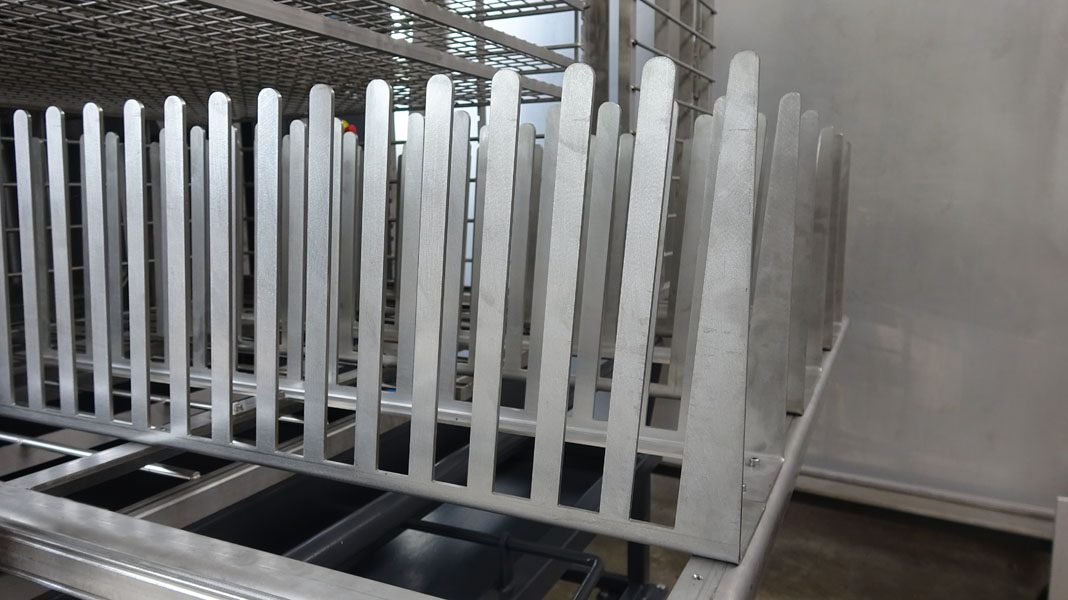

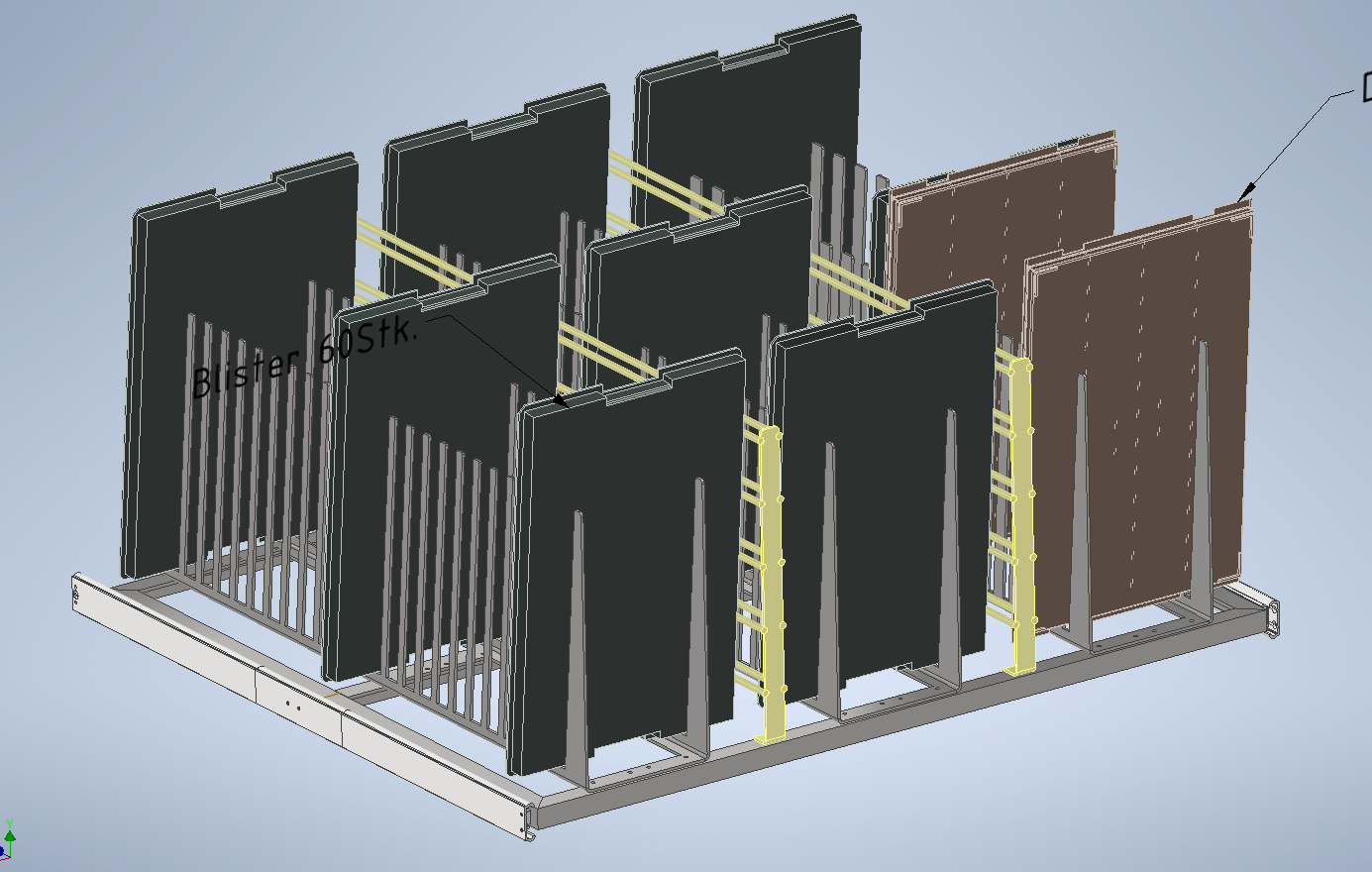

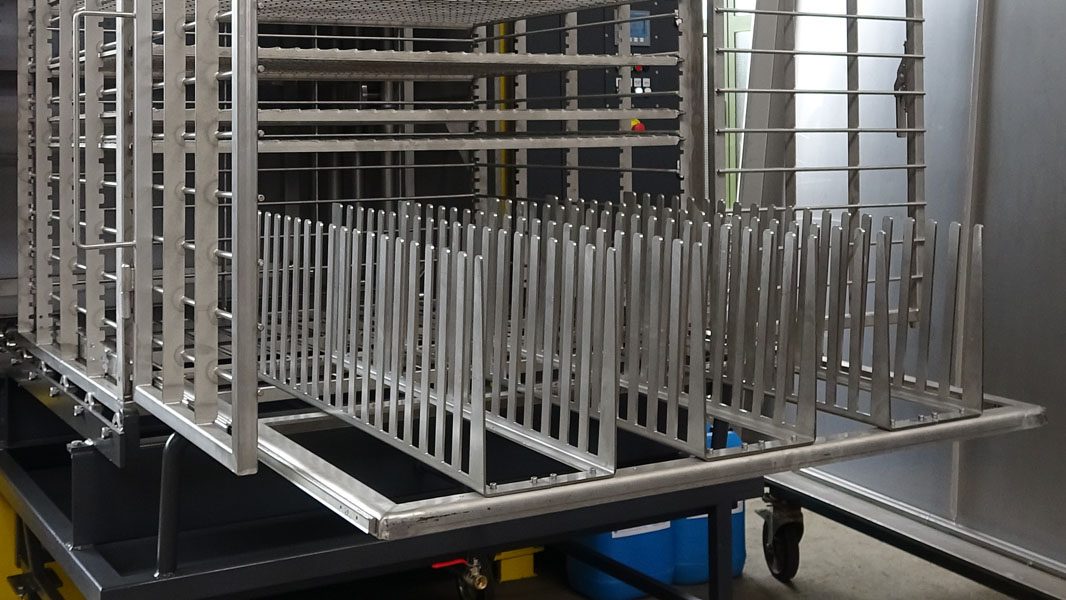

- KLT basket and shelves
- Fine filter in the pressure line
